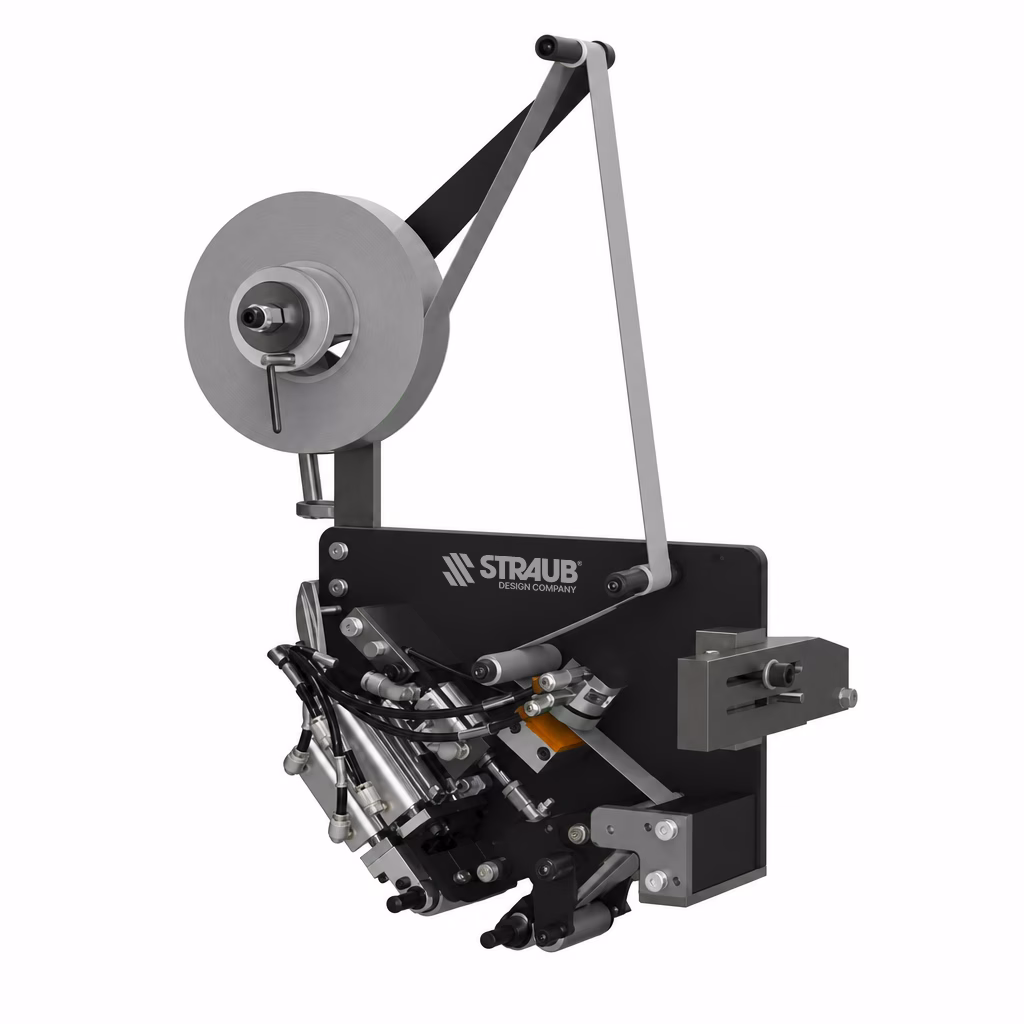

T-628 Flat Surface Tape Applicator

Flexible, Automated Tape Application for Flat Surface Production

The T-628 Flat Surface Tape Applicator is designed to apply a wide variety of pressure-sensitive tapes to flat surfaces with speed and flexibility. Capable of applying continuous strips or intermittent tape with gaps, the system supports a broad range of applications across packaging, food and beverage, electronics, solar, and other industrial markets.

Download Datasheet – T-628 Tape Applicator

Overview

Designed for Productivity in Real-World Conditions

The T-628 is engineered for efficient, repeatable tape application in demanding production environments. It can be mounted over a moving conveyor or integrated into custom systems where the applicator head moves across stationary products.

During operation, the system applies, cuts, and seals tape in a single process, using a serrated knife to complete the cut. This streamlined functionality helps eliminate the need for secondary cutting operations and improves overall throughput.

The applicator is capable of handling multiple tape types and configurations, supporting both single- and multi-lane applications depending on production needs.

Built for the Way Crews Actually Work

The T-628 is designed to integrate seamlessly into existing production lines or custom automation systems.

Key integration benefits include:

Mounts over moving conveyors or into custom-designed machinery
Supports systems where the applicator moves across stationary products
Enables continuous or intermittent tape application
Suitable for a wide range of industries, including:
- Packaging
- Food & beverage
- Electronics
- Traffic safety
- Solar
- Conductive products

This adaptability ensures the system fits into your workflow without requiring major process changes.

Flexible Setup for Field Applications

The T-628 offers a range of features and configuration options to meet specific production requirements:

Powered pre-stripper to reduce force required to pull tape from the roll
Edge folding device for specialized tape applications
Liner rewind system for double-coated tapes
Integrated control systems to start and stop tape application
Tape low sensors and tape fail sensors for improved reliability
Dual-head control system with automatic switching when tape runs low for continuous operation

Straub Design works with customers to configure each system for compatibility with production lines, materials, and performance goals.

Performance & Capabilities

Application Type

Continuous or intermittent tape application
Single or multiple lane capability

System Specifications

Tape Cutting

Serrated knife cut with tape sealed to product after application

Power Requirements

Electrical

24V DC, 2A or 115V AC, 1A (50/60 Hz)

Air

60 PSIG (4.1 bar)
0.4 SCFM (11.2 L/min)

Operational Notes

Product must be firmly driven under the applicator head, or securely held while the applicator moves across it
For non-rigid materials, it is recommended that tape length + inset exceeds 2” for optimal performance
The product pulls the tape from the roll during operation

Used in Solutions

Double-Sided Tape Tear Strip Tape Conductive Tape High Bond VHB Tape Insulating Protective Tape Printing Packaging Building Materials Food & Beverage Traffic Safety Solar Electronics

Need a Tape Application System Built for Your Operation?

If the T-628 doesn’t fully meet your needs, Straub Design can help.

We design and build custom tape application systems and automated solutions tailored to your products, materials, and production environment. Whether you need a standalone applicator or a fully integrated system, our team delivers solutions built for reliability, efficiency, and long-term performance.

We don’t just build equipment—we create systems that improve productivity and consistency across your operation.
