SD-40 / SF-40 Feeding and Conveying System

Automated Feeding and Conveying for Corrugated and Paperboard Products

The SD-40 / SF-40 Automatic Taping System is designed to automatically feed, convey, and apply adhesive tape to corrugated or paperboard blanks and other flat products at high production speeds.

The system feeds blanks from the hopper (SF-40) onto the conveyor (SD-40), applies one or more lanes of tape automatically with one of our tape applicators, and conveys the product out of the machine for additional processing. With taping speeds of up to 500 feet per minute, the SD-40 / SF-40 delivers consistent performance in automated packaging environments.

Top-loading of the feeder allows operators to load product while the machine is operating, supporting continuous operation and improved productivity.

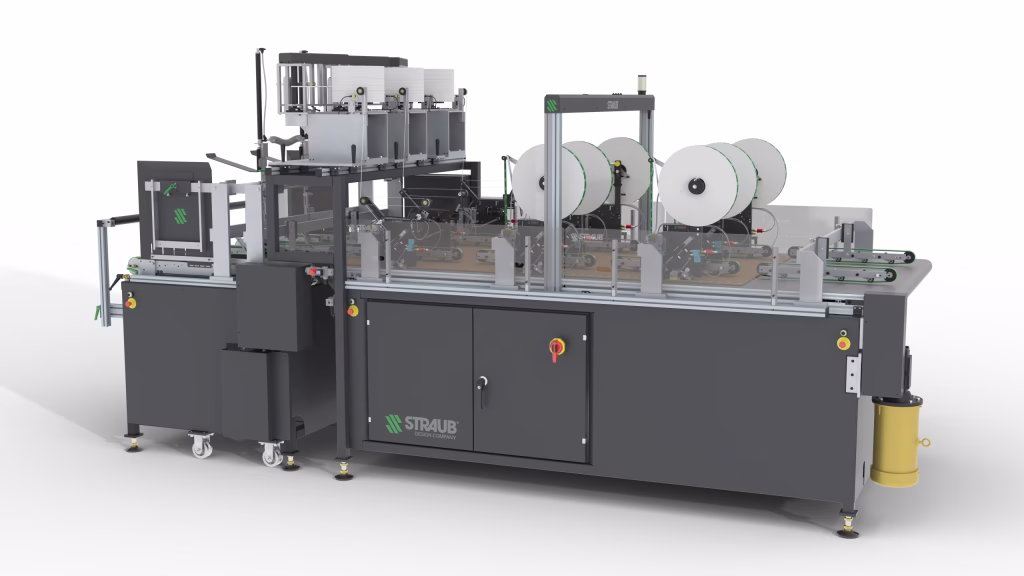

note: the image shown is the SD-60. The SD-40 is the same conveyor except the width is 40″ instead of 60″.

Download Datasheet – SD-40 / SF-40 Tape Application System with Feeder

Overview

Automated Taping Made Dependable

The SD-40 / SF-40 integrates automatic feeding, precise tape application, and continuous conveying into a single, streamlined system. Once the hopper is loaded, the system advances products and applies tape automatically—reducing manual handling and minimizing variability.

Designed for corrugated and paperboard applications, the SD-40 / SF-40 supports consistent tape placement while fitting into a wide range of packaging workflows.

One System — Multiple Taping Configurations

The SD-40 / SF-40 is designed to support a variety of taping configurations and production needs, including:

Application of transfer tape with liner in place or removed
Application of tear strip tape
Single or multiple lanes of tape applied in one pass
Integration with downstream processing equipment
Dual lane feeding options allow for two different blanks to be taped with the same conveyor

Its modular design allows the system to adapt easily to different tape types, product formats, and packaging requirements.

Built to Match Your Process Requirements

The SD-40 / SF-40 Automatic Taping System can be configured with optional features to meet specific production goals, including:

Multiple tape applicators, explore Tape Applicators
Apply several lanes of tape simultaneously in a single pass
Dual taping heads with automatic switching
Automatically switches heads when a transfer tape roll runs low, enabling continuous operation
Variety of tape applicators
Supports tear strip tape, adhesive transfer tape, magnetic tapes, and foam tapes
Downstream processing equipment, explore Material Handling Solutions
Integration with stackers, shingling conveyors, and other material-handling solutions
Dual lane applications

Straub Design engineers work closely with customers to ensure each system configuration integrates seamlessly into the complete packaging line.

Performance & Standards

Product Specifications

Product width: 12″ to 40″ (305 mm to 1,016 mm)
Product length: 12″ to 35″ (305 mm to 900 mm)
Product thickness: 15-point paperboard (0.4 mm minimum)

Tape Roll Sizes

Tear strip tape: 15″ OD × 7″ high, 6″ ID core
Transfer tape: 18″ OD, 3″ ID core

Machine Specifications

Electrical: 240 VAC, 3-phase, 60 Hz
Operating speed: Up to 350 feet per minute (107 m/min)
Machine size: 16′ L × 5′ W × 5.5′ H

Additional Availability

The SD-40 / SF-40 system is also available in a 60″ (1,524 mm) width configuration

Need a Customized Taping System?

If the SD-40 / SF-40 does not perfectly match your packaging requirements, Straub Design can help.

We specialize in engineered tape application systems, offering custom machine configurations, specialized applicators, and fully integrated packaging solutions designed around your materials, processes, and long-term automation goals.

We don’t just build equipment—we partner with you to ensure lasting performance and scalability.
