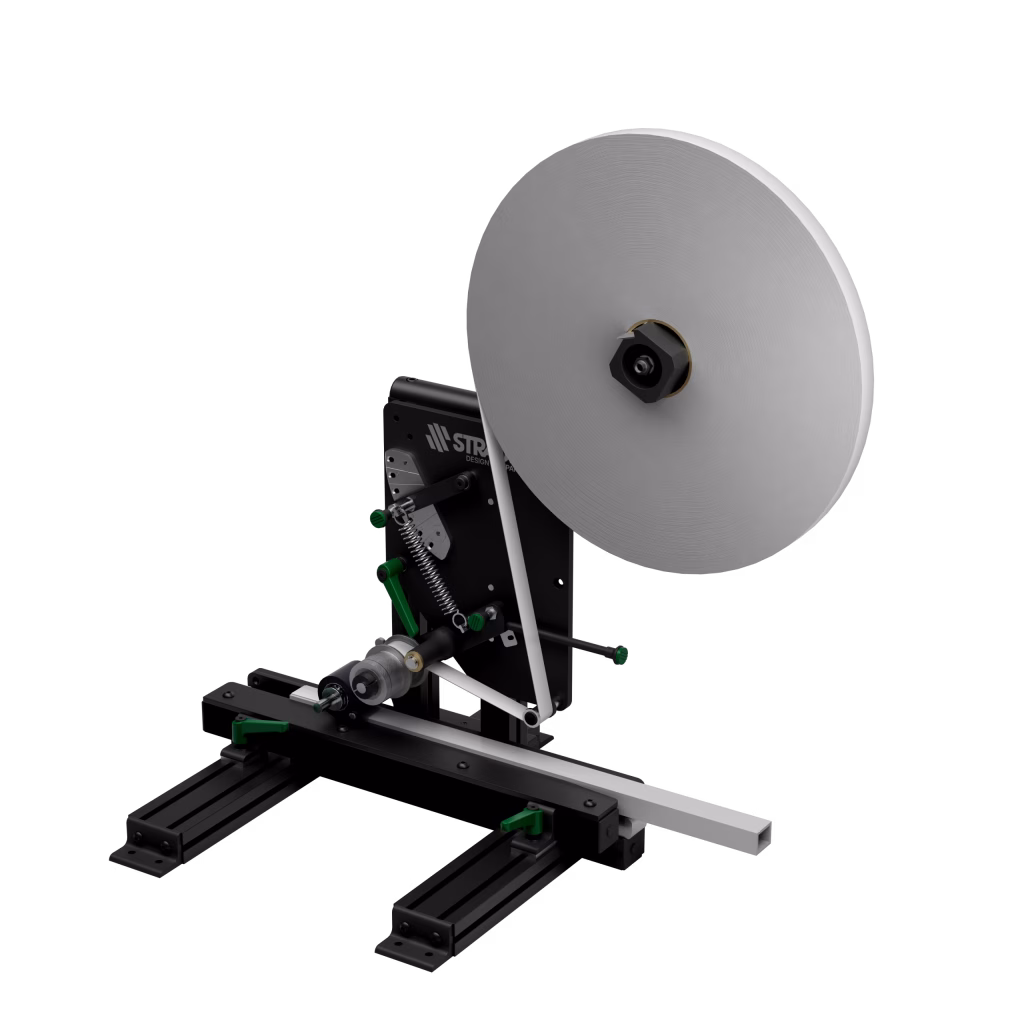

SD-310/320 Straight Line Laminator

High-precision, manual-assist tape lamination for straight-line applications.

The SD-310/320 Straight Line Laminator is a proven, production-ready manual process assist solution designed to apply pressure-sensitive tapes accurately and consistently along straight paths. Operators simply push the product through the unit, where tape is applied with controlled pressure and precise alignment before being cut to length.

Built for industrial environments where consistency, quality, and throughput matter, the SD-310/320 removes variability from manual tape application—delivering repeatable results without the complexity of full automation.

Download Datasheet – SD-310/320 Straight Line Laminator

Overview

Consistent Straight-Line Tape Application—Made Simple

By guiding the product through a straight-line path, the system delivers uniform results every time—eliminating guesswork, rework, and inconsistent quality.

This straightforward approach allows teams to increase production speed while maintaining precise, repeatable tape application across a wide range of parts and product types.

How it works:

Operator-guided product pushed through the laminator
Single-lane or dual-lane configurations
Fixed-width or flexible tape configurations depending on production needs

Why the SD-310/320 Straight Line Laminator

Consistent, repeatable tape placement with controlled pressure
Improves manual tape application efficiency by 100% or more
Eliminates variability from “by-hand” application
Simple, durable design for industrial production environments
Supports large-diameter tape rolls to minimize changeovers
Backed by Straub Design’s proven straight-line laminator platform

With over 20 years of successful straight-line laminator installations, the SD-310/320 reflects decades of refinement driven by real-world production needs.

Built to Support a Wide Range of Products and Processes

Common Applications Include:

Double-sided tape applied to posts and stiffeners
Trailer and specialty vehicle components
Metal enclosures
Architectural components
Roof bows and structural elements

The SD-310/320 can be easily integrated into existing workflows as a standalone workstation or paired with upstream and downstream processes.

Tape Widths:
- Standard guide widths: 1/4″, 3/8″, 1/2″, 3/4″, 1″
- Custom widths available upon request
Maximum Roll Diameter:
- Up to 18 in (457 mm) for reduced changeovers
Application Method:
- Operator fed, straight line manual assist lamination
Construction:
- Durable steel apply arm designed for continuous industrial use

The SD-310/320 is available in multiple configurations to match production requirements:

Fixed SD-310/320-1XXX

Designed for operations applying one tape width at a single pressure setting.

Fixed application parameters
Adjustable spring pressure (tool required)
Tape-specific guide width
Ideal for dedicated, repeatable applications

Flex SD-310/320-2XXX

Designed for operations with multiple tape widths or varying pressure requirements.

Tool-less adjustable spring pressure and wet-out
Adjustable guide width for tapes from 1/4″ to 1″
Supports rapid changeovers
Ideal for variable products and mixed production runs

Additional Options Include:

Single-lane or dual-lane configurations
Multi-level automation support
Custom guide widths
Custom system integration

Used in Solutions

High Bond VHB Tape Specialty Tape Building Materials Appliances Automotive Solar Electronics

Looking for Something Similar—but Not Quite This?

If the SD-310/320 isn’t an exact fit, that doesn’t mean you’re starting from scratch.

Straub Design specializes in adapting proven equipment platforms or developing custom solutions to meet specific production goals. Whether you need a modified straight-line laminator or a fully integrated multi-station system, our team works closely with you to understand your process, constraints, and long-term plans.

From simple enhancements to custom automation, we build solutions that grow with your operation.

Find out more
